SmarTurbo is a group company focused on R&D, manufacturing and sales of high speed turbo blower, turbo compressor and turbo blower aerator. We have built the most comprehensive research and development system of high speed permanent-magnet synchronous motor, air bearing and magnetic bearing and aerodynamics for mass-production of turbo blower, turbo compressor and turbo blower aerator.

Turbo Blower Core Technology

Turbo blower consist of core technology of Turbo Blower Engine, High Speed VFD, Smart Control System, Touch Screen Control Panel and Mobile Phone Remote Control.



Turbo Blower Engine

Turbo blower engine is high speed centrifugal blower.



High Speed VFD

The developed high performance VFD for high speed permanent magnet motor is more energy-saving and high-efficient.

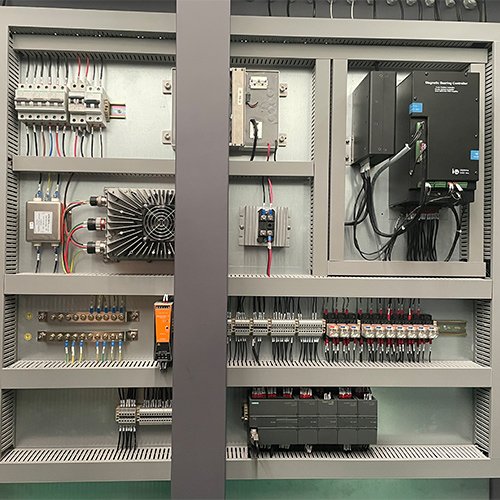

Smart Control System

It adopts PLC control with multiple communication method. Multiple control and monitoring is available, including the on-site, DCS remote and 4G-LTE.

Through state monitoring of logic data, built-in control program automatically detects, judges and terminates abnormal operation.

One-button start-stop control is reserved to facilitate on-site commissioning and troubleshooting under abnormal operation in time.



Touch Screen Control Panel

Simple and clear interface is easy to operate, detect and display system pressure and flow curve in real time.

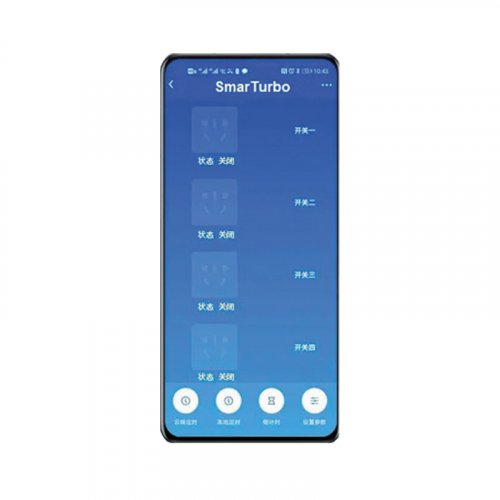

Mobile Phone Remote Control

Turbo blower can be remotely monitored and controlled through mobile devices by user.


Turbo Blower Engine Technology

Turbo blower engine consist of core technology of High Speed Impeller, High Speed Motor, Magnetic Bearing, High Speed Rotor, High Speed Rotor Coil and Volute.



High Speed Impeller

Turbo blower engine adopts design concept of three-dimensional flow impeller, which improves impeller efficiency up to 95%,realizes wide operation range, and volume flow

adjustable from 45% to 100%.

High Speed Motor

Permanent magnet synchronous motor is with electromagnetic efficiency up to 98%, wide range of high efficient operation, directly-driven loading, and without transmission loss.


Magnetic Bearing

Magnetic bearing is designed for complex operating conditions like high speed, extreme temperature, large loading and strong vibration.



High Speed Rotor

Variable frequency and speed control is good for the motor rotating in maximum speed of 200000 rpm.

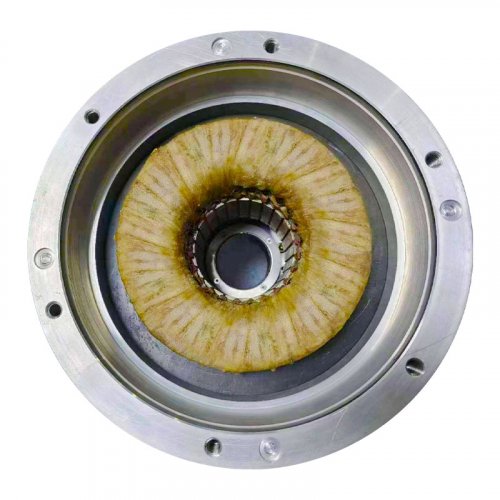

High Speed Rotor Coil

Class H insulation is adopted to make the motor has high reliability and durability even operating in high temperature, strong corrosion and current shock.



Volute

High efficient aerodynamic design ensure good aerodynamic performance of blade and low aerodynamic noise, which help satisfy high pressure ratio, high efficiency and large flow aerodynamic performance


Turbo Blower Advantage

High Efficiency

Turbo blower save 50% electricity bill more than traditional roots blower.

Smart Control

Turbo blower adopt touch screen control panel and mobile phone remote control. It supports multiple control methods.

Plug and Play

Turbo blower air flow and pressure is adjusted by blower rotation speed.

Easy Maintenance

Regularly replace filter cotton as per the hints. The maintenance is easy and fast with extremely low cost.

Turbo Blower Parameter Table

ParameterRated PowerRated PressureRated FlowFlow
ModelkWkPa m3/min m3/min
37KW-4037 40 43 25-43
37KW-8037 80 25 15-25
55KW-8055 80 43 33-43
75KW-4075 40 104 72-104
75KW-6075 60 73 51-73
75KW-8075 80 58 40-58
75KW-10075 100 47 32-47
90KW-8090 80 68 52-68
110KW-40110 40 153 107-153
110KW-60110 60 110 76-110
110KW-80110 80 88 57-88
110KW-100110 100 70 55-70
150KW-40150 40 183 127-183
150KW-60150 60 135 100-135
150KW-80150 80 105 75-105
150KW-100150 100 96 63-96
150KW-120150 120 83 58-83
185KW-60185 60 179 111-179
185KW-80185 80 138 110-138
185KW-100185 100 115 82-115
185KW-120185 120 90 70-90
185KW-150185 150 75 60-75
220KW-40220 40 305 213-305
220KW-60220 60 238 167-238
220KW-80220 80 165 115-165
220KW-100220 100 140 98-140
220KW-120220 120 114 94-114
250KW-150250 150 120 81-120
280KW-60280 60 240 180-240
280KW-80280 80 200 138-200
280KW-100280 100 176 111-176
280KW-120280 120 155 108-155
280KW-150280 150 120 90-120
315KW-60315 60 307 215-307
315KW-80315 80 241 168-241
315KW-100315 100 201 140-201
315KW-120315 120 175 122-175
315KW-150315 150 147 102-147
350KW-60350 60 340 238-340
350KW-80350 80 250 175-250
350KW-100350 100 210 145-210
350KW-120350 120 194 135-194
350KW-150350 150 164 114-164
400KW-80400 80 306 214-306
400KW-100400 100 255 178-255
400KW-120400 120 222 155-222
400KW-150400 150 187 130-187
450KW-80450 80 345 241-345
450KW-100450 100 288 201-288
450KW-120450 120 250 175-250
450KW-150450 150 210 147-210
500KW-80500 80 383 268-383
500KW-100500 100 320 224-320
500KW-120500 120 277 193-277
500KW-150500 150 234 163-234
550KW-80550 80 422 295-422
550KW-100550 100 352 246-352
550KW-120550 120 305 213-305
550KW-150550 150 257 180-257
630KW-80630 80 483 338-483
630KW-100630 100 403 282-403
630KW-120630 120 350245-350
630KW-150630 150 295 206-295
710KW-80710 80 542380-542
710KW-100710 100 460 324-460
710KW-120710 120 392275-392
710KW-150710 150 331 232-331
800KW-80800 80 614430-614
800KW-100800 100 512 359-512
800KW-120800 120 444311-444
800KW-150800 150 375 263-375
900KW-80900 80 690483-690
900KW-100900 100 576 403-576
900KW-120900 120 500350-500
900KW-150900 150 421 294-421
1000KW-801000 80 775543-775
1000KW-1001000 100 640 448-640
1000KW-1201000 120 555388-555
1000KW-1501000 150 468 327-468


Magnetic Bearing

Magnetic bearing is designed for complex operating conditions like high speed, extreme temperature, large loading and strong vibration.


Design Simulation

To ensure the magnetic bearing performance, our self-developed simulation software do the follow simulation: magnetic field simulation, electric field simulation, multi-physics coupling simulation, mechanical stiffness and strength simulation, temperature simulation, vibration and noise simulation, rotor dynamics simulation, system simulation etc.








Test

A comprehensive magentic bearing test system has been established. Our fully-developed bearing test capability and data analysis capability can carry out performance verification for magnetic bearing and provide technical support for the test, as a result tailor-made products can be realized.
