SmarTurbo is a group company focused on R&D, manufacturing and sales of high speed turbo blower, turbo compressor and turbo blower aerator. We have built the most comprehensive research and development system of high speed permanent-magnet synchronous motor, air bearing and magnetic bearing and aerodynamics for mass-production of turbo blower, turbo compressor and turbo blower aerator.

Turbo Blower Core Technology

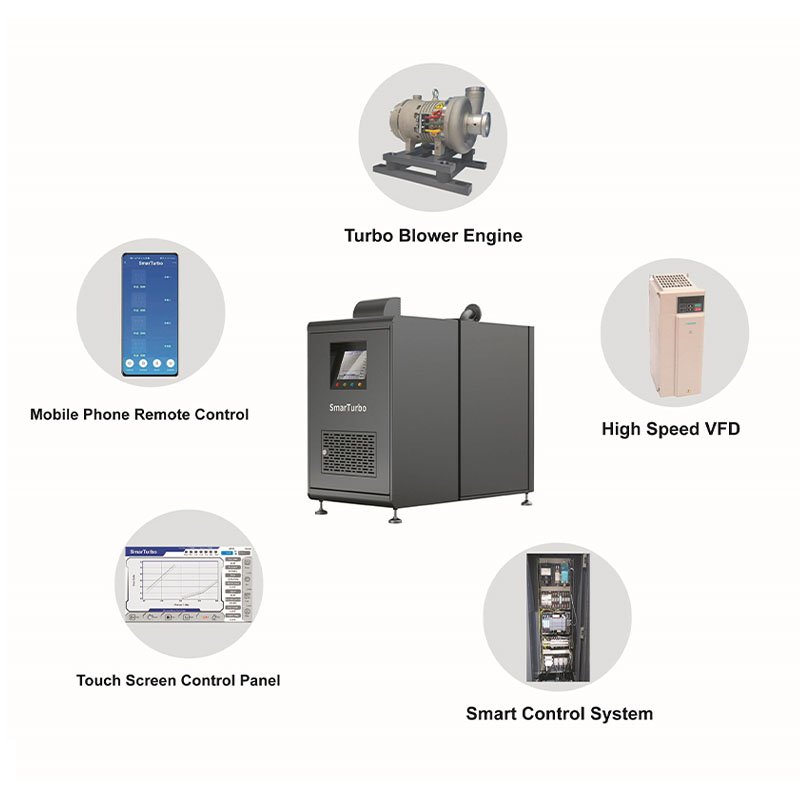

Turbo blower consist of core technology of Turbo Blower Engine, High Speed VFD, Smart Control System, Touch Screen Control Panel and Mobile Phone Remote Control.


Turbo Blower Engine

Turbo blower engine is high speed centrifugal blower.

High Speed VFD

The developed high performance VFD for high speed permanent magnet motor is more energy-saving and high-efficient.




Smart Control System

It adopts PLC control with multiple communication method. Multiple control and monitoring is available, including the on-site, DCS remote and 4G-LTE. Through state monitoring of logic data, built-in control program automatically detects, judges and terminates abnormal operation. One-button start-stop control is reserved to facilitate on-site commissioning and troubleshooting under abnormal operation in time.







Touch Screen Control Panel

Simple and clear interface is easy to operate, detect and display system pressure and flow curve in real time.

Touch-Screen-Control-Panel

Mobile Phone Remote Control

Turbo blower can be remotely monitored and controlled through mobile devices by user.


Mobile-Phone-Remote-Control

Turbo Blower Engine Technology

Turbo blower engine consist of core technology of High Speed Impeller, High Speed Motor, Air Bearing, High Speed Rotor, High Speed Rotor Coil and Volute.



High Speed Impeller

Turbo blower engine adopts design concept of three-dimensional flow impeller, which improves impeller efficiency up to 95%,realizes wide operation range, and volume flow adjustable from 45% to 100%.



 High-Speed-Impeller



High Speed Motor

Permanent magnet synchronous motor is with electromagnetic efficiency up to 98%, wide range of high efficient operation, directly-driven loading, and without transmission loss.



_0000_High-speed-Motor



Air Bearing

Air bearing is designed for complex operating conditions like high speed, extreme temperature, large loading and strong vibration.



Air-Bearing



High Speed Rotor

Variable frequency and speed control is good for the motor rotating in maximum speed of 200000 rpm.



High-speed-Rotor



High Speed Rotor Coil

Class H insulation is adopted to make the motor has high reliability and durability even operating in high temperature, strong corrosion and current shock.



High-speed-Rotor-Coil



Volute

High efficient aerodynamic design ensure good aerodynamic performance of blade and low aerodynamic noise, which help satisfy high pressure ratio, high efficiency and large flow aerodynamic performance



High-Efficient-volute

Turbo Blower Advantage

High Efficiency

Turbo blower save 50% electricity bill more than traditional roots blower.

Smart Control

Turbo blower adopt touch screen control panel and mobile phone remote control. It supports multiple control methods.

Plug and Play

Turbo blower air flow and pressure is adjusted by blower rotation speed.

Easy Maintenance

Regularly replace filter cotton as per the hints. The maintenance is easy and fast with extremely low cost.

Turbo Blower Parameter Table

Model3HP5HP7HP10HP15HP20HP25HP30HP40HP50HP60HP75HP
Discharge Pressure
kpa
Air Flow(m3/min),20℃,Humidity 60%, 1atm

402.3 3.5 5.3 7.4 11.4 15 19 27 33 45 59 71
50
4.369.212152229 40 50 62
60
3.6 5 8.1 10 13 16.5 25 33 41 49
70
34.27.48.9111419 30 37 43
80
2.53.55.87.291117 25 31 38
90
16 23 28 34
100
2531
110
2228
120
2026
Shaft Power(kw)23.55.1710.213.917.220.426354453
Blower Power(kw)2.23.75.57.5111518.52230405060
Model100HP125HP150HP175HP200HP225HP250HP300HP400HP500HP600HP800HP1000HP
Discharge Pressure
kpa
Air Flow(m3/min),20℃,Humidity 60%, 1atm
4080 92 119 141 162 188 215 270 324 430 540 648 972
5069 83 108 129 150 172 192 245 298 384 490 596 894
6063 77 95 109 128 147 170 210 255 340 420 510 765
7055 67 85 95 120 130 149 193 226 298 386 452 678
8052 61 72 87 104 120 130 176 205 260 352 410 615
9044 54 64 80 94 107120151 186 240 302 372 558
10040 50 59 7486100112141179224282 358537
110394757707991101134161202268 322483
12036445565748394125149188250 298447
Shaft Power(kw)6882100118136159183225273366450546750
Blower Power(kw)7590110130150175200250300400500600698


Turbo Blower
Application Field

Air Bearing

Air bearing is designed for complex operating conditions like high speed, extreme temperature, large loading and strong vibration.





Design Simulation

The bearing load capacity, rigidity and damping coefficients can be precisely predicted by the self-developed simulation software for air bearing performance.

A series of bearing development is completed: bearing diameter range of 20mm~100 mm; bearing operating speed ranges from 20 krpm to 200 krpm. The power of air bearing supported machine ranges from 10 kW to 500 kW.








Test

A comprehensive air bearing test system has been established. Our fully-developed bearing test capability and data analysis capability can carry out performance verification for air bearing and provide technical support for the test, as a result tailor-made products can be realized.








Manufacture

By complete production process flow for air bearing and the perfect supply chain system, the key and core process manufacture can all be carried out by ourselves. With an annual output of 5000 sets of bearing, it realizes bearing series, batch production and supports bearing customization.





Core Technology:

  • Turbo-Blower-Engine
    Turbo-Blower-Engine
  • High-Speed-VFD
    High-Speed-VFD
  • Touch-Screen-Control-Panel
    Touch-Screen-Control-Panel
  • Mobile-Phone-Remote-Control
    Mobile-Phone-Remote-Control
  • Smart-Control-System
    Smart-Control-System
  • High-Speed-Impeller
    High-Speed-Impeller
  • High-speed-Motor
    High-speed-Motor
  • High-Efficient-volute
    High-Efficient-volute
  • Air-Bearing
    Air-Bearing
  • High-speed-Rotor-Coil
    High-speed-Rotor-Coil
  • High-speed-Rotor
    High-speed-Rotor
